Premium 3.8kW Grid Tied Solar Power Kit with LG Solar Panels, 5.5kW Hybrid Inverter and 24kWh Battery Bank

This Premium 3.8kW 48V Complete Grid-Tie Solar Power System is designed with the best-selling solar modules from the world-leading solar manufacturer, LG Solar, and seamlessly integrates with the national power grid, offering a comprehensive solution for users. It is especially beneficial for those with high electricity consumption, such as when using electric and plug-in vehicles, swimming pools, air conditioners, and heat pumps.

By feeding up to 3.8kW of solar power into the a large 24kWh battery bank, this system can significantly reduce electricity bills while providing unmatched versatility. The inverter operates efficiently in grid-tie, hybrid, off-grid, and UPS modes, ensuring uninterrupted power supply even during mains power cuts. Advanced monitoring features enable users to keep track of the battery bank through a mobile app connected via Bluetooth, with optional Wi-Fi connectivity (sold separately) and remote portal monitoring capabilities available for added convenience.

The innovative inverter is fully compliant with G98/G99 standards required for grid-tie installation and is easily upgradable. Users can integrate a separate solar array via an additional MPPT solar controller, which can be added to the system at any time, perfect for more complex roof spaces. Although the kit includes an AGM lead-acid battery bank, it is also compatible with Lithium batteries, allowing for greater flexibility in storage options.

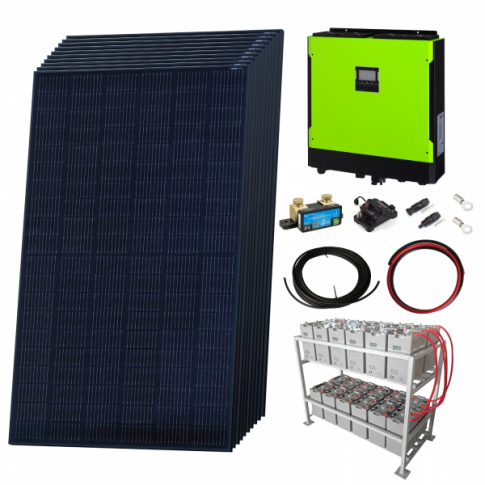

Kit includes:

• 10 x 380W black LG monocrystalline solar panels each with Cello technology™ and 2 x 1.2m high quality solar cable and MC4 connectors
• 5.5kW 48V hybrid solar pure sine wave inverter
• 24kWh 48V 500Ah battery bank - comprised of 24 x 2V AGM batteries
• Battery measurement smartshunt with inbuilt bluetooth
• Automatic circuit breaker
• 25m 4mm²solar extension cables
• A pair of T4 solar connectors
• 2 x 1m of 50mm² tinned copper battery cables
• Loose ring terminals

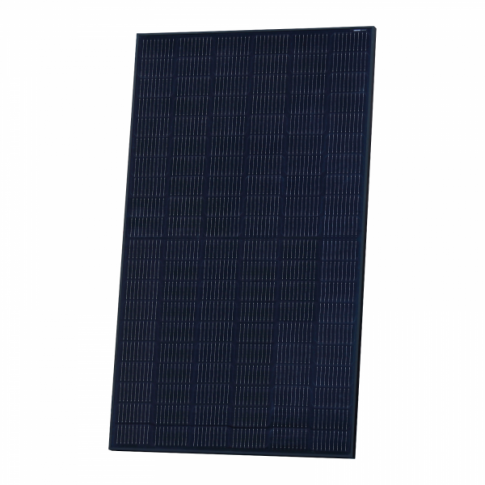

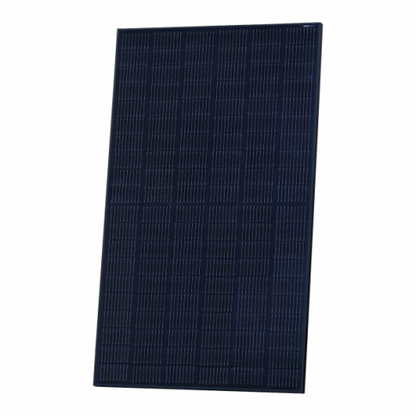

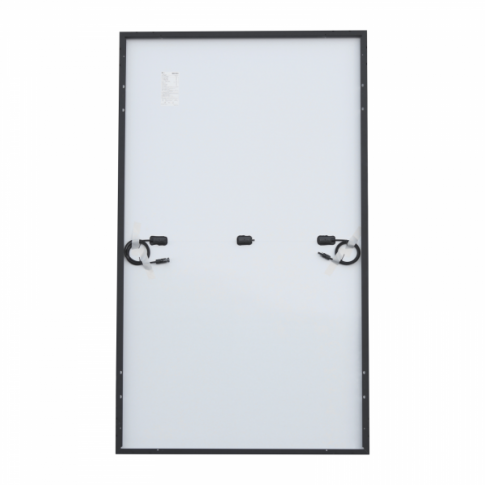

10 x 380W Black LG Monocrystalline Solar Panels with Cello technology™:

These high-quality 380W black solar panels, manufactured by LG Solar—a division of global company LG Electronics and winner of the Intersolar and Top Brand PV industry awards—offer superior performance with an industry-leading 25-year warranty. The panels are fully waterproof and designed for strong performance in a wide range of environments. These robust panels continue to perform well even in high temperatures or low irradiance – up to 30% more power than similar panels under high temperature conditions. They are rated for a load of up to 6,000Pa from the front, equivalent to being buried under 1.8m of snow, and a rear load of 5,400Pa which is greater than the force applied by hurricane-strength winds.

The exclusive Cello Technology™ enhances efficiency and reliability of these panels by replacing the small number of wide busbars in standard solar panels with nine thin wires. With decreased spacing between wires, electrical losses are reduced by giving electrical current a shorter path to travel. Cylindrical cross-section keeps resistance low while deflecting more light onto the solar cell, unlike flat busbars which reflect light that hits them away from the panel. The tight layout of the wires also gives electricity multiple paths, enhancing long-term reliability through added redundancy.

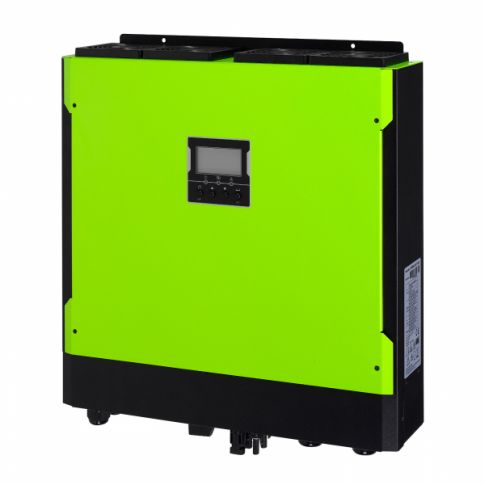

5500W 48V Iconica Hybrid Inverter:

The Iconica 5500W 48V hybrid grid-tie inverter boasts advanced 3-in-1 hybrid functionality, combining a pure sine wave inverter, an MPPT solar charge controller, and a smart mains charger. It offers highly customisable settings for various parameters (max. feed-in power, charging voltages, battery type, etc.) and advanced communication options, including remote monitoring via a Wi-Fi connection kit. Additionally, the inverter supports seamless integration with an energy meter for optimised self-consumption and features an illuminated LCD screen displaying real time data. Compatible with various battery types, this inverter is a versatile and efficient solution for modern energy needs.

The inverter features three main operating modes:

Grid-tie mode: Energy generated by solar panels is fed back to the national grid.

Grid-tie with battery backup: Generated solar power can be used to feed energy back to the grid, supply power to the load and charge the battery.  Mains electricity can also be used to power the load and charge the battery. In this mode the user can configure PV energy supply priority, charging source priority, and load supply source priority. When solar power is not sufficient to power the load, or if mains power is unavailable, the battery will act as a 'back up' and continue to power the load (e.g. at night when there is no solar power or during a mains power cut). 'Peak' and 'Off-peak' times for electricity demand can also be set, in order to prioritise either load power supply or battery charging.

Off-grid mode: Utilises solar energy to power loads or charge batteries without feeding power back to the grid, while still allowing mains power usage if necessary. In this mode the user can configure PV energy supply priority, charging source priority, and load supply source priority.

Using a Grid-tie operation with battery backup offers significant advantages over standard grid-tie inverters by ensuring uninterrupted power and reducing electricity costs. During power outages, standard grid-tie inverters shut down completely, leaving users without electricity and wasting solar energy. In contrast, this advanced inverter utilises stored battery power to maintain an uninterrupted power supply (UPS), keeping appliances running and continuing to harvest energy from solar panels. As electricity prices rise and subsidies for grid-fed power decrease, maximising self-consumption becomes crucial. The system can prioritise using stored solar energy with 'peak' and 'off-peak' settings to restrict mains power usage during periods where electricity cost is higher, thereby reducing reliance on the grid and lowering overall electricity costs. This approach ensures that solar energy is effectively utilised, enhancing both energy independence and cost efficiency.

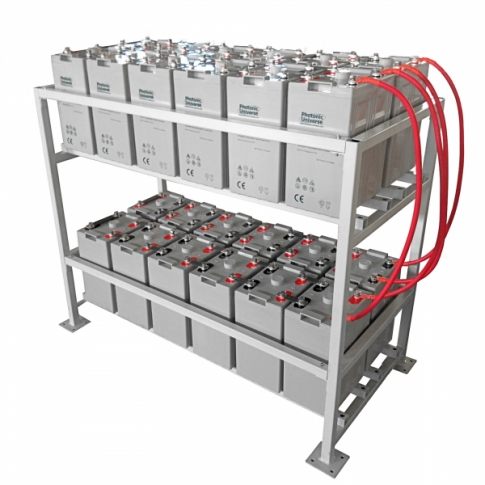

24kWh 48V 500Ah AGM Battery Bank:

The advanced 48V 500Ah battery bank included in this kit is comprised of 24 x 2V high quality AGM batteries, complete with metal plate connectors for instant connection. Using 2V batteries offers important advantages over battery banks made up of 12V batteries, including a longer service life and deeper discharge capability.

Additional items:

This kit also includes 1m positive and negative 50mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the battery bank, an automatic circuit breaker for use between the hybrid inverter and the battery bank, 25m solar extension cable and T4 connectors to connect to the existing 1m of solar cable fitted to the solar panels.

Click on the Details and Specifications tab for more information about this kit.
