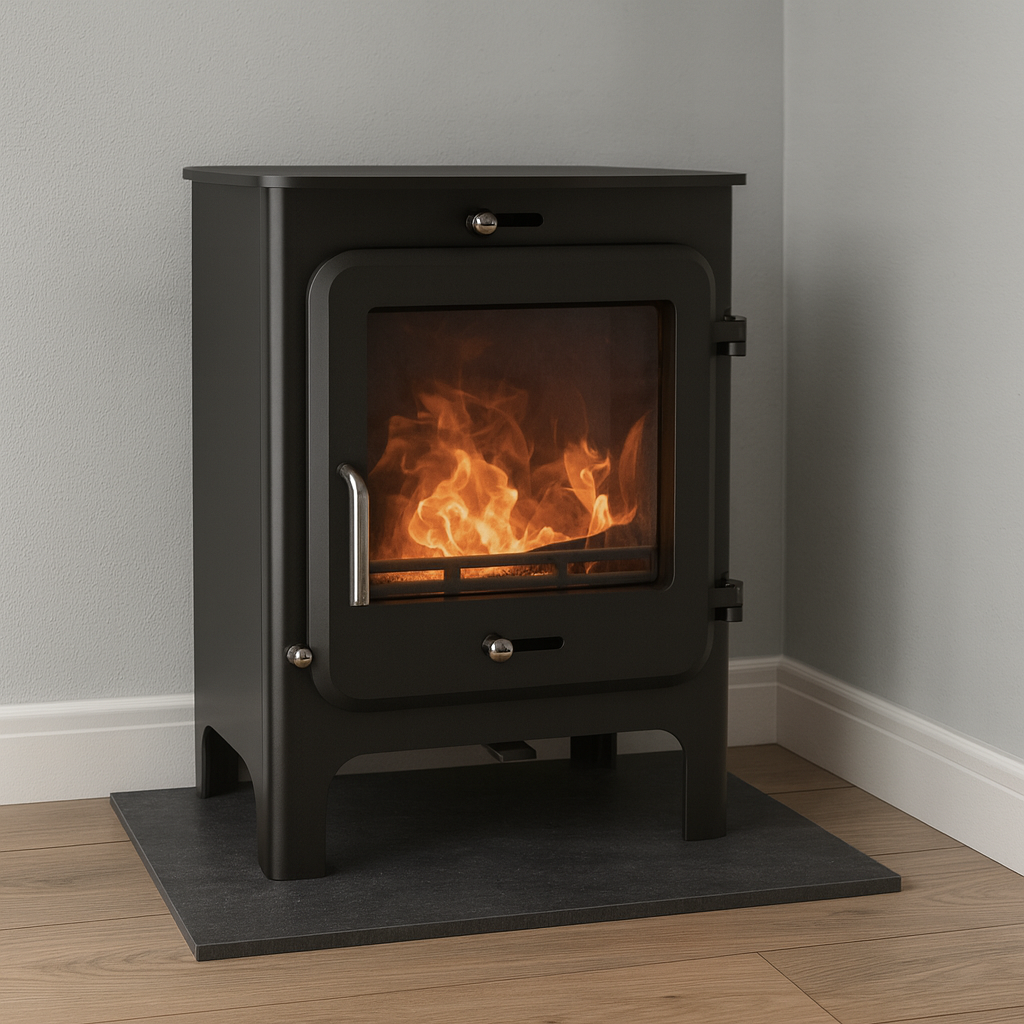

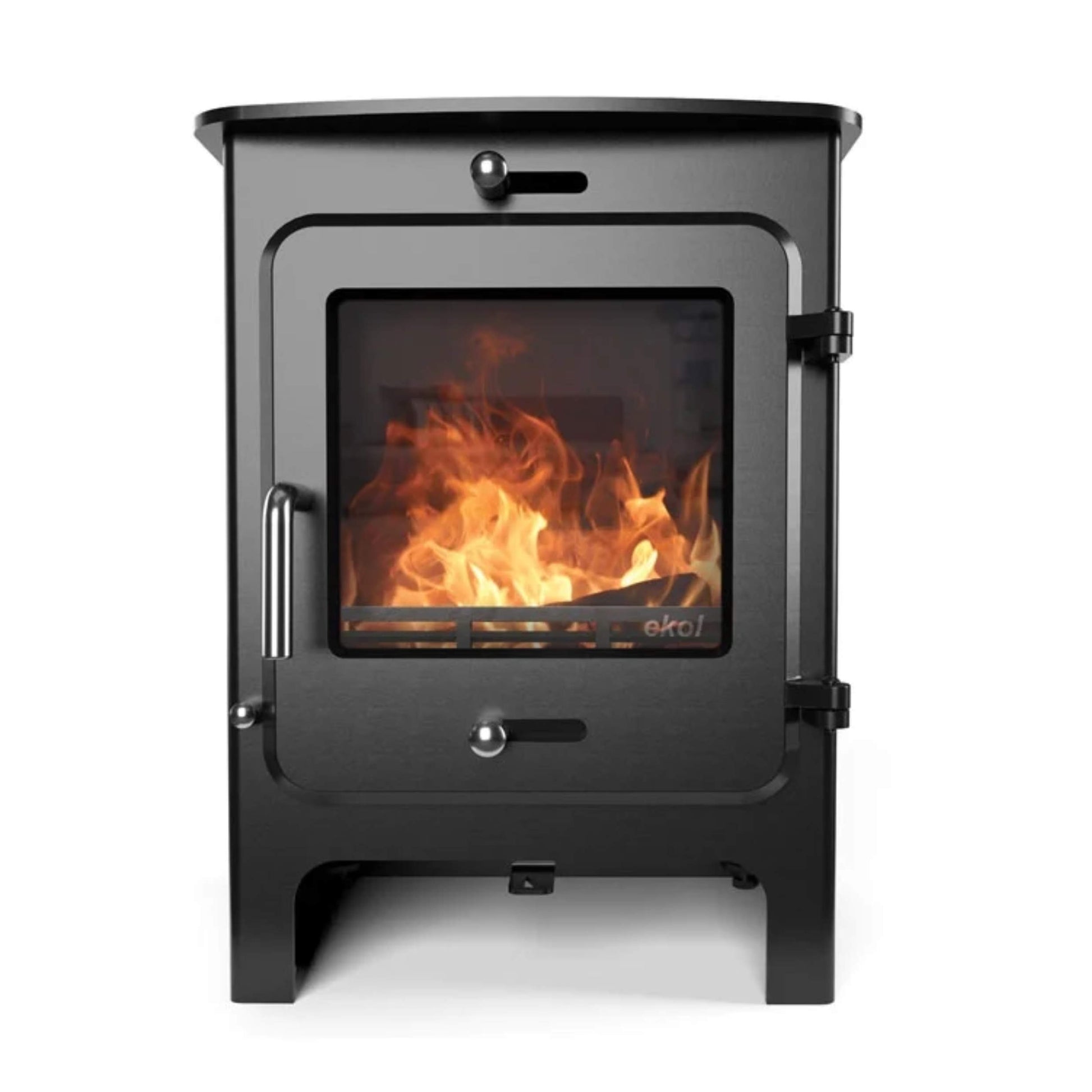

Ekol Clarity 5 Low

• Fuel type: Wood burning
• Nominal heat output: 5kW
• Efficiency: 80.3%
• Compliance: DEFRA approved and Ecodesign 2022 compliant

Heat output range

• 1–5kW

Construction

• Hybrid design with cast iron internals
• Dense refractory firebrick linings
• Precision engineered outer steel shell up to 10mm thick
• Window: Large viewing window for enhanced flame visibility

Flue outlet positions

• Top flue
• Rear flue
• Flue size: 5” (125mm)
• Back of stove to centre of top flue: 120mm

Rear flue height

• 430mm (standard height version)
• 630mm (high version)

Distance to combustibles

• 820mm to rear wall
• 800mm to side walls

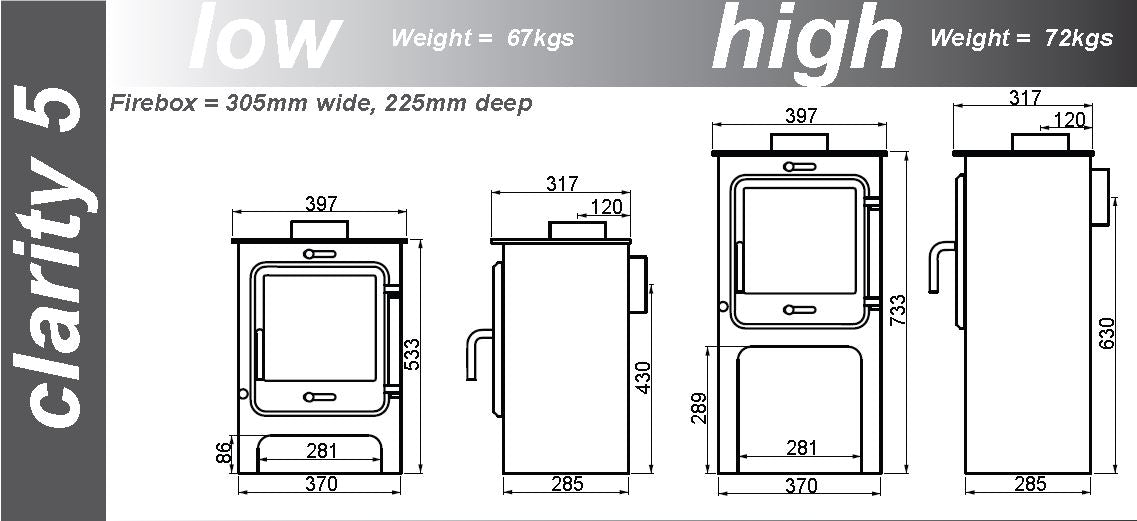

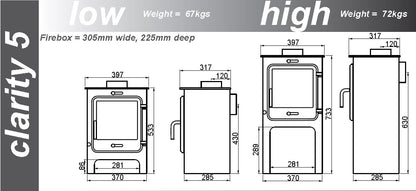

Dimensions

• Height: 533mm (standard height)
• Height: 733mm (high version)
• Width: 397mm
• Depth: 317mm

Approximate weight

• 75kg (standard height)
• 85kg (high version)

Installation and Instruction Manual for Clarity Stove Range

Developed from a desire to create environmentally friendly wood burning stoves that are both beautiful and subtly understated, Saltfire stoves are developed without compromise to ensure the best possible burning performance. Each stove is lovingly hand built from individually cast components by highly skilled foundry craftsmen.

Built to last and designed to perform as intended every time, Saltfire stoves require minimal maintenance while offering reliable and efficient heat. All Saltfire stoves are DEFRA approved and ultra clean burning. The full ST and ST X ranges and the Peanut range are all EcoDesign 2022 ready for burning wood.

Saltfire pride themselves on playing their part in saving the planet and, in return, you are instantly rewarded with a mesmerising flame effect unique to Saltfire stove technology.

We offer a professional stove installation service that gives you peace of mind your stove is fitted safely, correctly and in line with UK regulations. Every home is unique, and the right installation approach depends on your space, chimney setup and flue requirements, so our pricing is arranged in clear tiers rather than a single flat rate.

Our typical installation pricing is structured as follows

• Standard installation into an existing fireplace with a suitable chimney, from £700 and including core connection and setup.
• Installation that requires a new flue liner, minor hearth adjustments or additional components, from £1,200 depending on layout and materials.
• Installation where no chimney is present and a full twin wall external flue system is required, from £1,800 with final costs influenced by height, routing and site access.

All installations are carried out by qualified professionals who ensure your stove is fitted safely, performs efficiently and meets current Building Regulations. If you are unsure which tier your property may fall into, or if you would like guidance on your setup, just get in touch. We will review your space, talk through the options and provide a clear and transparent quotation before any work goes ahead.

Warranty and Guarantee

Saltfire stoves are designed and built to an exceptionally high standard and supported by a thorough quality control process. Every stove is prepared at our site in Dorset by our skilled and experienced team.

All Saltfire stoves are guaranteed to be free from manufacturing defects in the stove body for a period of twelve months from the date of purchase. This guarantee can be extended to five years by registering the stove within 30 days of purchase and providing the required documentation.

Register for 5 year warranty here: Warranty Registration

Where a manufacturing defect is confirmed, Saltfire Stoves will repair or replace the defective item promptly within our factory workshops.

The customer is responsible for all costs associated with removal, installation, postage or shipping, and any other incidental costs incurred within their property.

Conditions of the Guarantee

• The stove must have been purchased new from an authorised Saltfire Stoves supplier or directly from Saltfire Stoves. Proof of purchase in the form of a sales receipt or invoice must be retained.
• The guarantee is non transferable.
• The stove must only be used for its intended purpose and in accordance with the operating instructions and installation manual.
• Only correct and recommended fuel types may be burned in the stove.
• The stove must be installed in accordance with all current Building Regulations. Proof of competent installation must be retained, including the installer’s contact details.
• Proof of purchase and proof of competent installation must be provided with any guarantee claim. Acceptable documentation includes a HETAS certificate, OFTEC certificate, or local Building Control approval notice.

Warranty Registration

To extend the standard twelve month guarantee to five years, the stove must be registered within 30 days of purchase. The following documentation must be supplied to Saltfire Stoves:

• Proof of purchase
• Valid installation certificate such as HETAS, OFTEC, or Building Control approval

Failure to register within this period will limit the guarantee to the standard twelve month term. Register for warranty here: Warranty Registration

Excluded from the Guarantee

The guarantee does not cover consumable or wear items. These include:

• Glass
• Door seals and glass rope seals
• Paintwork
• Internal lining plates and firebricks
• Baffles and grates

These items are considered customer replaceable and can be obtained from your local stockist or directly from Saltfire Stoves.

The guarantee also excludes:

• Damage caused by incorrect use, over firing, or the use of non recommended fuels
• Damage caused by external factors including incorrect flue installation or installation not carried out by a competent person
• Products manufactured by other brands, which are covered by the respective manufacturer’s guarantees

Faulty Items

If an item is believed to be faulty, we must be informed before any return is made. Instructions for return will be provided.

Returned items must meet the following conditions:

• The item must be complete with all component parts
• No repair must have been attempted
• The item must not have been altered or modified
• The customer is responsible for ensuring the item arrives back in sound condition

Unwanted Items and Returns

Most unwanted items may be refunded, credited, or replaced within fourteen days of receipt, subject to the following conditions:

• We must be informed in advance of the intention to return
• Items must be unused and in original packaging
• Flexible flue liner cannot be refunded under any circumstances
• Individual items forming part of a kit or complete package have no individual refund or exchange value
• Items cut to order or bespoke items, including painted to order products, cannot be refunded
• The customer is responsible for returning unwanted items

Please allow 3 to 4 working days before dispatch when a custom painting service is added to your order. Orders placed before 10am are usually dispatched the same day, subject to availability. Delivery is completed by a 48 hour courier service, and you will be contacted directly to schedule a convenient delivery date.

If you have not heard from the courier within 24 hours of dispatch, please get in touch with us and we will follow this up for you. This product is delivered on a small pallet to help protect it in transit and to ensure safe handling on arrival, so please make sure there is suitable access for curbside pallet delivery at the property.
